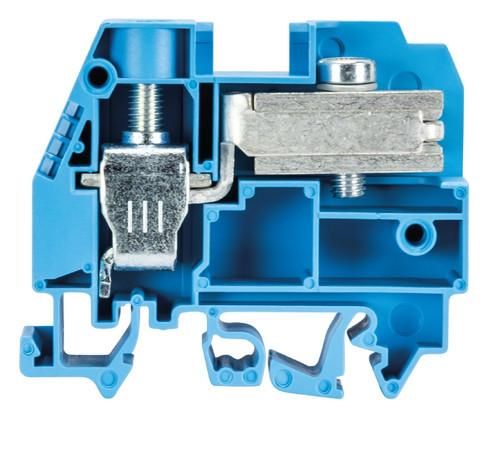

Neutral conductor isolating terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 16 mm, width 12 mm, color blue
| Property | Value |
| Operating temperature: | -40.00 to 55.00 °C |
| Color: | blue |
| QS single-wire: | 1.00 to 10.00 mm² |
| QS fine-wire: | 1.00 to 16.00 mm² |
| QS stranded: | 16.00 to 25.00 mm² |
| Rated current In: | 62.00 A |
| Rated voltage: | 400.00 V |
| Mounting type: | Top hat/G rail TH35/G32 |
| Connection plate required: | yes |
| Suitable for N busbar: | 3x10 mm |
| Flammability class of the insulating material according to UL94: | V0 |
| Material of the insulating body: | Thermoplastic |
| Depth: | 58 mm |
