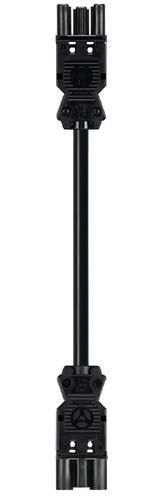

GST18i3 connecting cable socket - plug, length 1.0 m, 3-pin, coding mains 250 V, 16 A, coding color black, strain relief color black, cable color black, conductor cross-section 1.5 mm, cable type H05Z1Z1-F, fire class: Eca
| Property | Value |
| Length: | 1.00 mm |
| Version side 1: | Socket |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 250.00 V |
| Conductor cross-section: | 1.50 mm² |
| Rated impulse voltage: | 4.00 kV |
| Housing color: | black |
| Protection class (IP): | IP20 |
| Rated current: | 16.00 A |
| Color of coding/contact insert: | black |
| Type of pre-assembled cable: | Connection cable |
| Degree of pollution: | 2.00 |
| Mechanical coding: | yes |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 70.00 °C |
| Insulating part permanently temperature-resistant up to: | 100.00 °C |
| Surface treatment of contacts: | tinned |
| Halogen-free: | yes |
| Fire load: | 0.548 kWh |
| Number of poles: | 3.00 |
| Type of locking: | integrated in the connector |
| Cable diameter: | 8 mm |
| Cable type: | H05Z1Z1-F |
| Fire behavior according to EN 13501-6: Class: | Eca |
Features
Nominal conductor cross-section
1.50 mm²
Cable diameter
8 mm
Cable type
H05Z1Z1-F
Rated surge voltage
4.00 kV
HAB
GST18I3K1BS 15H 10SW 1m
Manufacturer
HAN
92.232.1060.1
GTIN
4015573511804
Rated voltage
250.00V
Rated current
16.00 A
Housing color
Black
Halogen free
Yes
Length
1.00 mm
Coat color
Black
Number of poles
3.00
IP protection)
IP20
Degree of contamination
2.00
