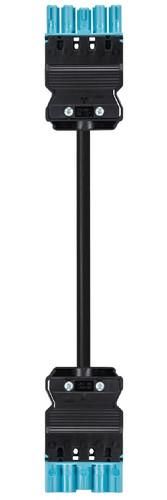

GST18i5 connecting cable socket - plug, length 4.0 m, 5-pin, coding mains 250 V + not SELV, 16 A, coding color pastel blue, strain relief color black, cable color black, conductor cross-section 1.5 mm, cable type H05Z1Z1-F, fire class: Eca
| Property | Value |
| Version side 1: | Socket |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Nominal conductor cross-section: | 1.5 mm² |
| Rated impulse voltage: | 4 kV |
| Protection class (IP): | IP20 |
| Rated current: | 16 A |
| Color of coding/contact insert: | blue |
| Type of pre-assembled cable: | Connection cable |
| Degree of pollution: | 2 |
| Mechanical coding: | yes |
| Pole marking: | L, N, PE, D1, D2 |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 100 °C |
| Surface treatment of contacts: | tinned |
| Halogen-free: | yes |
| Fire load: | 2,401 kWh |
| Number of poles: | 5 |
| Type of Locking: | integrated in the connector |
| Cable diameter: | 10.1 mm |
| Cable type: | H05Z1Z1-F |
| Fire behavior according to EN 13501-6: Class: | Eca |
Features
Nominal conductor cross-section
1.5 mm²
Cable diameter
10.1 mm
Cable type
H05Z1Z1-F
Rated surge voltage
4 kV
HAB
92.257.4060.9 GST18I5KSBS 15H 40PB02
Manufacturer
HAN
92.257.4060.9
GTIN
4015573647756
Rated voltage
250V
Rated current
16A
Halogen free
Yes
Coat color
Black
Number of poles
5
IP protection)
IP20
Degree of contamination
2
