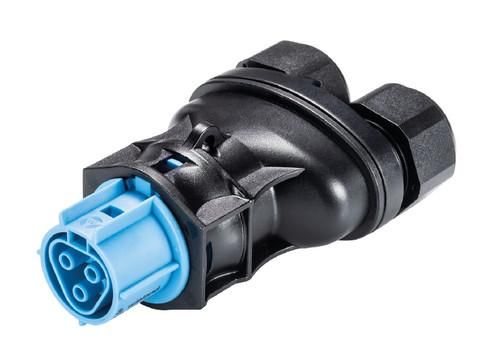

RST 20i3/2 connector double connection, 3-pin, socket part in spring force technology, application 250V/400V, 20A, for cable diameter 10-14mm, coding color light blue, housing color black
| Property | Value |
| Design: | Socket |
| Connection type: | Spring-loaded connection |
| Number of connections per pole: | 2.00 |
| Rated voltage: | 250.00 V |
| Rated impulse voltage: | 4.00 kV |
| Rated current: | 20.00 A |
| Fire load: | 0.517 kWh |
| Width: | 38.00 mm |
| Color of coding/contact insert: | blue |
| Halogen-free: | yes |
| Height: | 59.00 mm |
| Contact material: | CuZn |
| Length: | 95.90 mm |
| Mechanical coding: | yes |
| Surface treatment of contacts: | silver-plated |
| Pole marking: | 1, 2, 3 |
| Number of poles: | 3.00 |
| Protection class (IP): | IP66 |
| Degree of pollution: | 3.00 |
| Housing material: | Polyamide (PA) |
| With strain relief: | yes |
| Connection cross-section (single-wire): | 0.5 to 2.5 mm² |
| Connection cross-section (fine-stranded): | 0.5 to 1.5 mm² |
| Type of locking: | integrated in the connector |
| Cable diameter: | 10 to 14 mm |
| Max. continuous temperature resistance of contact part: | 100 °C |
Features
Cable diameter
10 to 14 mm
Rated surge voltage
4.00 kV
HAB
RST20I3F B2 ZRYS BL07
Manufacturer
HAN
96.031.0353.9
GTIN
4049644012129
Connection type
Spring-loaded connection
Version
Rifle
Rated voltage
250.00V
Rated current
20.00 A
Width
38.00 mm
Halogen free
Yes
Height
59.00 mm
Length
95.90 mm
With strain relief
Yes
Number of poles
3.00
IP protection)
IP66
Degree of contamination
3.00
Housing material
Polyamide (PA)
