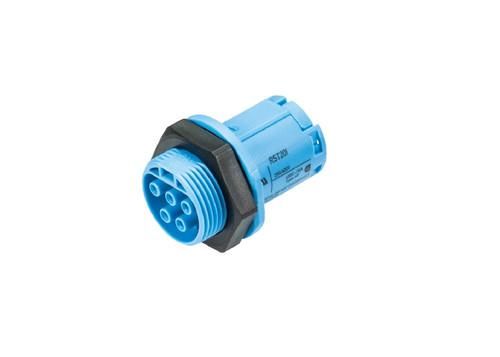

RST 20i5/4 device connection M25, 5-pin, socket for crimp contact, application 250V/400V, 20A, coding color light blue
| Property | Value |
| Connection type: | Crimp |
| Number of connections per pole: | 1 |
| Design: | Socket |
| Rated voltage: | 250 V |
| Rated impulse voltage: | 4 kV |
| Rated current: | 20 A |
| Fire load: | 0.128 kWh |
| Width: | 35 mm |
| Color of coding/contact insert: | blue |
| Thread connection dimension: | M25 |
| Halogen-free: | yes |
| Height: | 35 mm |
| Contact material: | CuZn |
| Length: | 43.9 mm |
| Surface treatment of contacts: | silver-plated |
| Pole marking: | 1, 2, 3, 4, 5 |
| Number of poles: | 5 |
| Protection class (IP): | IP66 |
| Plug direction: | straight |
| Degree of pollution: | 3 |
| Housing material: | Polyamide (PA) |
| Connection cross-section (fine-stranded): | 0.75 to 4 mm² |
| Type of locking: | integrated in the connector |
| Max. continuous temperature resistance of contact part: | 100 °C |
Features
Rated surge voltage
4 kV
HAB
RST20I5C B1 M01 BL07
Manufacturer
HAN
96.151.1053.9
GTIN
4049644012716
Connection type
Crimp
Version
Rifle
Rated voltage
250V
Rated current
20A
Width
35 mm
Halogen free
Yes
Height
35 mm
Length
43.9 mm
Number of poles
5
IP protection)
IP66
Plug direction
Straight
Degree of contamination
3
Housing material
Polyamide (PA)
