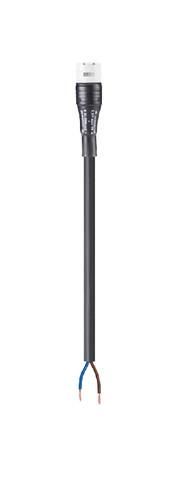

Connection cable socket - open end, length 4m, RST20i2, 2-pole, 250V, 16A, cable H05VV, cross-section 1.5mm, coding color light gray
| Property | Value |
| Version side 1: | Socket |
| Version side 2: | free cable end |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Stripping length: | 9 mm |
| Nominal conductor cross-section: | 1.5 mm² |
| Rated impulse voltage: | 4 kV |
| Protection class (IP): | IP66 |
| Rated current: | 16 A |
| Color of coding/contact insert: | gray |
| Type of pre-assembled cable: | Device connection cable |
| Degree of pollution: | 3 |
| Conductor end treatment: | ultrasonic-compressed wire ends |
| Pole marking: | L, N |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 100 °C |
| Surface treatment of contacts: | silver-plated |
| Halogen-free: | no |
| Fire load: | 1,309 kWh |
| Strip length: | 35 mm |
| Number of poles: | 2 |
| Locking type: | integrated in the connector |
| Cable diameter: | 7.3 to 7.7 mm |
| Cable type: | H05VV-F |
| Fire behavior according to EN 13501-6: Class: | Eca |
Features
Nominal conductor cross-section
1.5 mm²
Cable diameter
7.3 to 7.7mm
Cable type
H05VV-F
Rated surge voltage
4 kV
HAB
RST20I2K1B-15P 40GL
Manufacturer
HAN
96.222.4003.0
GTIN
4015573927933
Rated voltage
250V
Rated current
16A
Halogen free
No
Coat color
Black
Number of poles
2
IP protection)
IP66
Degree of contamination
3
