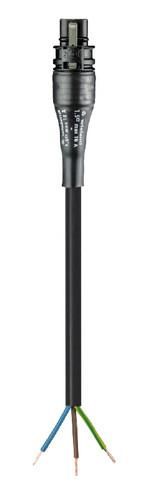

Connection cable plug - open end, length 2m, RST20i3, 3-pin, 250V, 10A, cable H07RN-F, cross-section 1.0mm, coding color black
| Property | Value |
| Version side 1: | free cable end |
| Version side 2: | plug |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Stripping length: | 9 mm |
| Nominal conductor cross-section: | 1 mm² |
| Rated impulse voltage: | 4 kV |
| Protection class (IP): | IP66 |
| Rated current: | 10 A |
| Color of coding/contact insert: | black |
| Type of pre-assembled cable: | Device connection cable |
| Degree of pollution: | 3 |
| Conductor end treatment: | ultrasonic compressed wire ends |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 60 °C |
| Insulating part permanently temperature-resistant up to: | 100 °C |
| Surface treatment of contacts: | silver-plated |
| Halogen-free: | no |
| Strip length: | 35 mm |
| Number of poles: | 3 |
| Type of Locking: | integrated in the connector |
| Cable diameter: | 8.8 to 7.2 mm |
| Cable type: | H07RN-F |
Features
Nominal conductor cross-section
1 mm²
Cable diameter
8.8 to 7.2mm
Cable type
H07RN-F
Rated surge voltage
4 kV
HAB
RST20I3K1-S 10 20SW
Manufacturer
HAN
96.231.2034.1
GTIN
4015573972384
Rated voltage
250V
Rated current
10A
Halogen free
No
Coat color
Black
Number of poles
3
IP protection)
IP66
Degree of contamination
3
