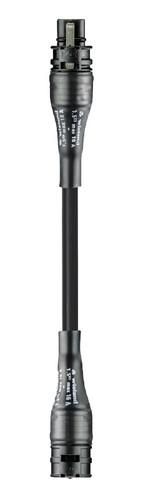

Circular connector assembled with halogen-free hose cable S05 Z1Z1-F3G1.5, socket on one side / plug on the other, cable cross-section: 1.5 qmm, color: connector black, cable black, system: RST 20/3K1 BS 15H 20SW, total length: 2 m
| Property | Value |
| Version side 1: | Socket |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Nominal conductor cross-section: | 1.5 mm² |
| Rated impulse voltage: | 4 kV |
| Protection class (IP): | IP66 |
| Rated current: | 16 A |
| Color of coding/contact insert: | black |
| Type of pre-assembled cable: | Connecting cable |
| Degree of pollution: | 3 |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 100 °C |
| Surface treatment of contacts: | silver-plated |
| Halogen-free: | yes |
| Fire load: | 0.918 kWh |
| Number of poles: | 3 |
| Type of locking: | integrated in the connector |
| Cable diameter: | 7.8 up to 8.2 mm |
| Cable type: | H05Z1Z1-F |
| Fire behaviour according to EN 13501-6: Class: | Eca |
Features
Nominal conductor cross-section
1.5 mm²
Cable diameter
7.8 to 8.2mm
Cable type
H05Z1Z1-F
Rated surge voltage
4 kV
HAB
RST20I3K1BS 15H 20SW
Manufacturer
HAN
96.232.2060.1
GTIN
4015573820616
Rated voltage
250V
Rated current
16A
Halogen free
Yes
Coat color
Black
Number of poles
3
IP protection)
IP66
Degree of contamination
3
