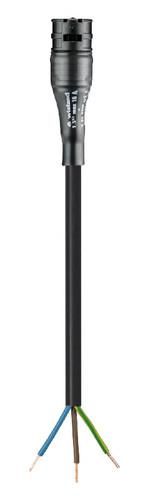

RST 20i3/2 connection cable socket - free end, 3-pin, assembled with shrink tubing, application 250V, 16A, cable type H07RN-F, length 4.0m, conductor cross-section 1.5mm, coding color black
| Property | Value |
| Length: | 4.00 mm |
| Version side 1: | Socket |
| Version side 2: | free cable end |
| Sheath color: | black |
| Rated voltage: | 250.00 V |
| Stripping length: | 9.00 mm |
| Conductor nominal cross-section: | 1.50 mm² |
| Rated impulse voltage: | 4.00 kV |
| Housing color: | black |
| Protection class (IP): | IP66 |
| Rated current: | 16.00 A |
| Color of coding/contact insert: | black |
| Type of pre-assembled cable: | Device connection cable |
| Degree of contamination: | 3.00 |
| Conductor end treatment: | ultrasonic compacted wire ends |
| Mechanical coding: | yes |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 60.00 °C |
| Insulating part permanently temperature-resistant up to: | 100.00 °C |
| Surface treatment of contacts: | silver-plated |
| Halogen-free: | no |
| Fire load: | 2.584 kWh |
| Stripping length: | 35.00 mm |
| Number of poles: | 3.00 |
| Type of locking: | integrated in the connector |
| Cable diameter: | 9.6 to 10 mm |
| Cable type: | H07RN-F |
Features
Nominal conductor cross-section
1.50 mm²
Cable diameter
9.6 to 10mm
Cable type
H07RN-F
Rated surge voltage
4.00 kV
HAB
RST20I3K1B-15 40SW
Manufacturer
HAN
96.232.4033.1
GTIN
4015573761766
Rated voltage
250.00V
Rated current
16.00 A
Housing color
Black
Halogen free
No
Length
4.00 mm
Coat color
Black
Number of poles
3.00
IP protection)
IP66
Degree of contamination
3.00
