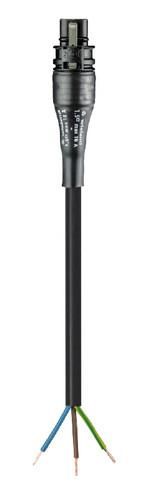

Connection cable plug - open end, length 9m, RST20i3, 3-pin, 250V, 16A, cable H05VV, cross-section 1.5mm, coding color black
| Property | Value |
| Version side 1: | free cable end |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Stripping length: | 9 mm |
| Nominal conductor cross-section: | 1.5 mm² |
| Rated impulse voltage: | 4 kV |
| Protection class (IP): | IP66 |
| Rated current: | 16 A |
| Color of coding/contact insert: | black |
| Type of pre-assembled cable: | Device connection cable |
| Degree of pollution: | 3 |
| Conductor end treatment: | ultrasonic-compressed wire ends |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 100 °C |
| Surface treatment of contacts: | silver-plated |
| Halogen-free: | no |
| Fire load: | 3,486 kWh |
| Strip length: | 35 mm |
| Number of poles: | 3 |
| Locking type: | integrated in the connector |
| Cable diameter: | 8.15 to 8.45 mm |
| Cable type: | H05VV-F |
| Fire behavior according to EN 13501-6: Class: | Eca |
Features
Nominal conductor cross-section
1.5 mm²
Cable diameter
8.15 to 8.45mm
Cable type
H05VV-F
Rated surge voltage
4 kV
HAB
RST20I3K1-S 15P 90SW
Manufacturer
HAN
96.232.9004.1
GTIN
4015573849488
Rated voltage
250V
Rated current
16A
Halogen free
No
Coat color
Black
Number of poles
3
IP protection)
IP66
Degree of contamination
3
