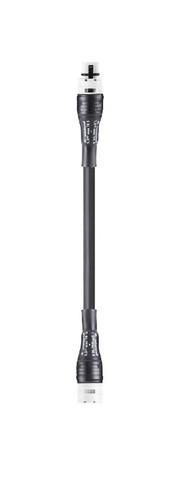

Circular connector assembled with cable H07RN-F 3G2.5, socket on one side / plug on the other, cable cross-section: 2.5 mm², color: connector gray, cable black, system: RST 20/3K1 BS 25 30GL, total length: 3 m
| Property | Value |
| Version side 1: | Socket |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Nominal conductor cross-section: | 2.5 mm² |
| Rated impulse voltage: | 4 kV |
| Protection class (IP): | IP66 |
| Rated current: | 20 A |
| Color of coding/contact insert: | gray |
| Type of pre-assembled cable: | Connection cable |
| Degree of pollution: | 3 |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 60 °C |
| Insulating part permanently temperature-resistant up to: | 100 °C |
| Surface treatment of contacts: | silver-plated |
| Halogen-free: | no |
| Number of poles: | 3 |
| Type of locking: | integrated in the connector |
| Cable diameter: | 11.3 to 11.9 mm |
| Cable type: | H07RN-F |
Features
Nominal conductor cross-section
2.5 mm²
Cable diameter
11.3 to 11.9mm
Cable type
H07RN-F
Rated surge voltage
4 kV
HAB
RST20I3K1BS 25 30GL
Manufacturer
HAN
96.233.3030.0
GTIN
4015573760639
Rated voltage
250V
Rated current
20A
Halogen free
No
Coat color
Black
Number of poles
3
IP protection)
IP66
Degree of contamination
3
