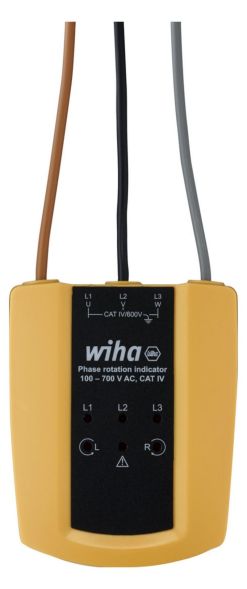

Simplifies your work: LED display for easy-to-read measurement results. Increases your efficiency: Simple determination of the rotating field and phase display in just one tool. Increases your flexibility: Test probes for variable application options. Dimensions: 93 x 75 x 31 mm Application: For determining the direction of rotation and checking the phases. Standards: CAT IV 600V Determining the direction of rotation in a three-phase power supply to check electrical connections No problem with the Wiha direction of rotation indicator with integrated phase display. Both the direction of rotation and the live phases are reliably identified using an LED display. A crocodile clip included in the delivery enables easy connection, e.g. to a motor terminal board. In combination with the test probes included, the direction of rotation indicator from Wiha offers great flexibility when testing. The rotating field direction indicator works with the mains voltage itself, so no batteries are required. According to the measurement category CAT III up to 1,000 V and CAT IV up to 600 V, the direction of rotation indicator offers maximum safety for work directly at the source of low-voltage installations. IEC/EN 61010-1, IEC/EN 61577-7, IEC/EN 611010-031, IP40.
| Property | Value |
| Type: | Meter |
| Color: | yellow/black |
| EAN: | 4010995452216 |
| Manufacturer no.: | SB25562 |
| Intended use: | Easy determination of the rotating field and phase display in just one tool |
| Display: | Phase display LED L1, L2, L3, rotating field display LED R, L |
| Measurement category: | CAT IV |
| Measurement range: | Direct voltage, up to 700 V |
| Safety: | Protection class IP 40 |
| Operating temperature range: | From 0 °C to 40 °C |
| Feature: | Overvoltage protection 600V, 3 measuring leads |
| Further information: | Test probes for variable application possibilities |
| Note: | Standards: IEC/EN 61010-1, IEC/EN 61577-7, IEC/EN 611010-031 |
| Dimensions: | General, Width: 75 mm x Height: 93 mm x Depth/Length: 31 mm |
