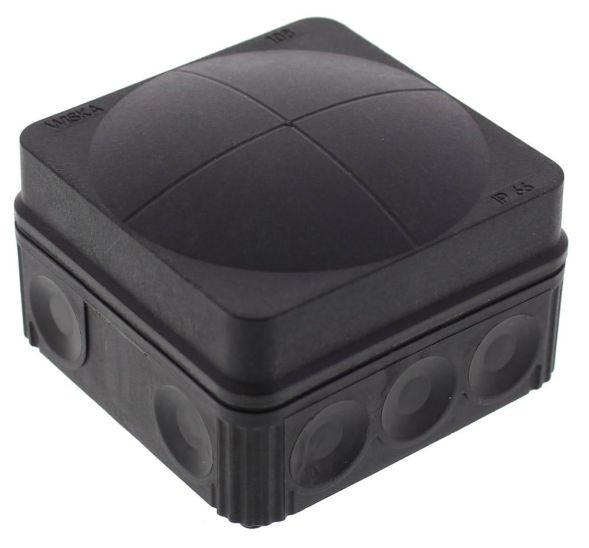

Wiska 10061999 108/empty/S black IP66 cable junction box

Description

Features

Reviews

Damp-proof cable junction box made of flame-retardant, halogen-free, glass-fiber-reinforced polypropylene, in 2-component plastic technology combined with puncture membranes made of thermoplastic elastomer. The box with a high protection class is weather- and UV-resistant, as well as impact-resistant and shatter-proof. Ideal for extreme use or installation indoors and outdoors. High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis and alcohol. There are permanently elastic, self-sealing puncture membranes on the sides and in the base for tool-free cable entry. The box is attached using a quick-mounting bracket or internal openings outside the sealing area.

Property	Value
Width:	76 mm
Length:	76 mm
Depth:	51 mm
Color:	black
Protection class (IP):	IP66
Equipment:	without
Mounting type:	Wall/ceiling mounting
Material:	Plastic
Cover fastening:	snap-on
Can be mounted in series:	no
Shape:	square
Type of housing feedthrough:	Sealing membrane
Halogen-free:	yes
For Ex-Zone Gas:	without
Functional integrity:	without
Explosion-tested version:	no
Supplied with casting compound:	no
Potable:	yes
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Number of entries:	12
Surface protection:	untreated
For pipe diameters:	other
Max. Conductor cross-section:	2.5 mm²
Sealable:	no
With shielding:	no
Rated insulation voltage Ui:	400 V
Introduction from the rear:	yes
Weatherproof:	yes
Cover design:	blank cover
Operating temperature:	-30 to 100 °C
Version:	Connection box
