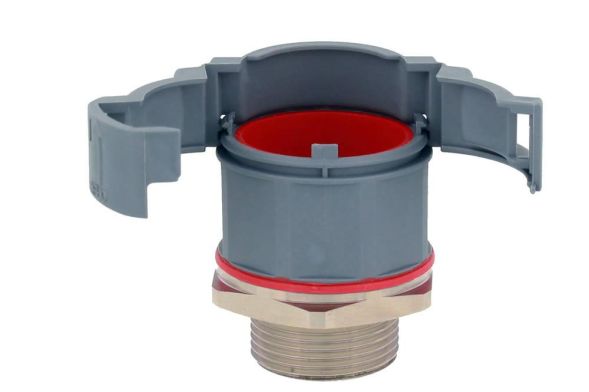

Our BraceFITTING made of plastic with a metal connection thread simplifies installation and reliably protects cables. With protection class IP68 as standard, it meets the highest demands in use. The locking system, which grips directly into the corrugated pipes, results in impressive tear resistance. Thanks to the molded-on, captive sealing ring, perfect sealing properties are achieved and the coloring saves time during assembly and inspection.
| Property | Value |
| Thread size: | M20 x 1.5 |
| Design: | straight |
| Rotatable thread: | no |
| Design: | external thread |
| Connection type: | plug connection |
| Thread type: | metric |
| Thread material: | Brass |
| Thread length: | 10.5 mm |
| Length: | 48.1 mm |
| Seal material: | Thermoplastic elastomers (TPE) |
| Color: | gray |
| Nominal diameter: | 14 mm |
| Protection class (IP): | IP68 |
| Material: | Polyamide (PA) |
| Operating temperature: | -40 to 100 °C |
| Transparent: | no |
Features
HAB
EMBFS-14-20-BG straight
Manufacturer
HAN
10106882
GTIN
4007686033557
Version
Straight
Design
External thread
Rotating thread
No
Operating temperature
-40 to 100 °C
Color
Thread type
Metric
Length
48.1 mm
Nominal diameter
14 mm
IP protection)
IP68
Transparent
No
Connection type
Plug connection
Material
Polyamide (PA)
