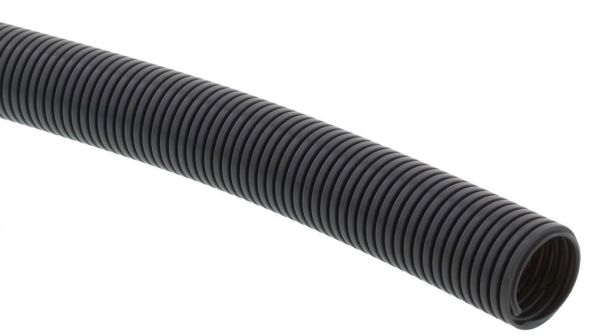

Plastic protective hose to protect cables from mechanical stress, sand and moisture.
| Property | Value |
| Lengthwise slit: | no |
| Lockable (two-part): | no |
| Approval according to DIN EN 61386-23: | no |
| Approval according to NF F 16-101: | no |
| Nominal diameter: | 10 mm |
| Inner diameter: | 9.9 mm |
| Outer diameter: | 13 mm |
| Compressive strength: | 125 N |
| Operating temperature: | -40 to 140 °C |
| Fire protection according to UL94: | V0 |
| Bending radius, static: | 26 mm |
| UV-resistant: | yes |
| Oil-resistant: | yes |
| Color: | gray |
| Sheathing material: | without sheathing |
| Flame-propagating: | no |
| Tensile strength: | 100 N |
| Halogen-free: | yes |
| Approval according to UR: | no |
| Approval according to VdTÜV/GGVSEB: | no |
| Approval according to CSA: | no |
| Approval according to LUL/British Standard: | no |
| Approval according to Lloyds Register TA: | no |
| Approval according to UTAC: | no |
| Approval according to DIN 5510: | no |
| Material: | Polyamide (PA) |
| Protection class (IP): | IP68 |
| Bending behavior: | flexible |
| With pull wire: | no |
| Highly slippery inner layer: | no |
| Flush-mounted installation: | no |
| Surface-mounted installation: | yes |
| Material quality: | Polyamide 6 |
Features
Flush-mounted installation
No
Inner diameter
9.9 mm
Bending radius, static
26 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
BCA-S-10-BG RAL 7031 NW10
Manufacturer
HAN
10107079
GTIN
4007686036893
Outer diameter
13 mm
Operating temperature
-40 to 140 °C
Color
Halogen free
Yes
Nominal diameter
10 mm
IP protection)
IP68
UV-resistant
Yes
Material
Polyamide (PA)
Material quality
Polyamide 6
