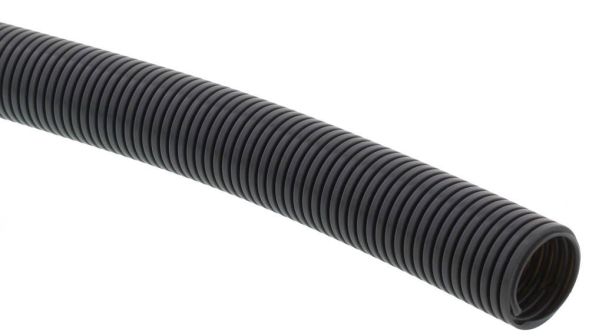

Suitable for protecting cables from mechanical stress, sand or moisture in order to avoid sources of error. Can be used for both static and dynamic applications.
| Property | Value |
| Lengthwise slotted: | no |
| Lockable (two-part): | no |
| Approval according to DIN EN 61386-23: | no |
| Approval according to NF F 16-101: | no |
| Nominal diameter: | 14 mm |
| Inner diameter: | 14.2 mm |
| Outer diameter: | 18.5 mm |
| Compressive strength: | 125 N |
| Operating temperature: | -40 to 125 °C |
| Fire protection according to UL94: | V2 |
| Bending radius, static: | 50 mm |
| UV-resistant: | yes |
| Oil-resistant: | yes |
| Color: | black |
| Sheathing material: | without sheathing |
| Flame-spreading: | no |
| Tensile strength: | 100 N |
| Halogen-free: | yes |
| Approval according to UR: | no |
| Approval according to VdTÜV/GGVSEB: | no |
| Approval according to CSA: | no |
| Approval according to LUL/British Standard: | no |
| Approval according to Lloyds Register TA: | no |
| Approval according to UTAC: | no |
| Approval according to DIN 5510: | no |
| Material: | Polyamide (PA) |
| Protection class (IP): | IP68 |
| Bending behavior: | flexible |
| With pull wire: | no |
| Highly slippery inner layer: | no |
| Flush-mounted installation: | no |
| Surface-mounted installation: | yes |
| Material quality: | Polyamide 6 |
Features
Flush-mounted installation
No
Inner diameter
14.2 mm
Bending radius, static
50 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
BCAV-S-14-BK RAL 9005 NW17
Manufacturer
HAN
10107089
GTIN
4007686037098
Outer diameter
18.5 mm
Operating temperature
-40 to 125 °C
Color
Halogen free
Yes
Nominal diameter
14 mm
IP protection)
IP68
UV-resistant
Yes
Material
Polyamide (PA)
Material quality
Polyamide 6
