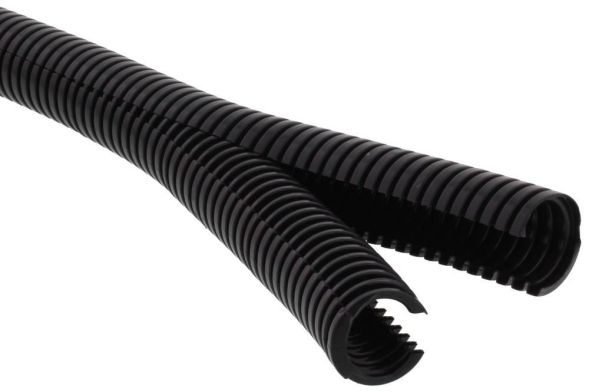

Plastic protective hose to protect cables from mechanical stress, sand and moisture.
| Property | Value |
| Lengthwise slit: | yes |
| Lockable (two-part): | yes |
| Approval according to DIN EN 61386-23: | no |
| Approval according to NF F 16-101: | no |
| Nominal diameter: | 23 mm |
| Inner diameter: | 20.5 mm |
| Outer diameter: | 28.3 mm |
| Operating temperature: | -40 to 140 °C |
| Fire protection according to UL94: | V0 |
| Bending radius, static: | 130 mm |
| UV-resistant: | yes |
| Oil-resistant: | yes |
| Color: | gray |
| Sheathing material: | without Sheathing |
| Halogen-free: | yes |
| Approval according to UR: | no |
| Approval according to VdTÜV/GGVSEB: | no |
| Approval according to CSA: | no |
| Approval according to LUL/British Standard: | no |
| Approval according to Lloyds Register TA: | no |
| Approval according to UTAC: | no |
| Approval according to DIN 5510: | no |
| Material: | Polyamide (PA) |
| Bending behavior: | flexible |
| With pull wire: | no |
| Highly slippery inner layer: | no |
| Flush-mounted installation: | no |
| Surface-mounted installation: | yes |
| Material quality: | Polyamide 6 |
Features
Flush-mounted installation
No
Inner diameter
20.5 mm
Bending radius, static
130 mm
Bending behavior
Flexibel
HAB
BCA-23-D-BG PA6 V2 split
Manufacturer
HAN
10107130
GTIN
4007686037920
Outer diameter
28.3 mm
Operating temperature
-40 to 140 °C
Color
Halogen free
Yes
Nominal diameter
23 mm
UV-resistant
Yes
Material
Polyamide (PA)
Material quality
Polyamide 6
