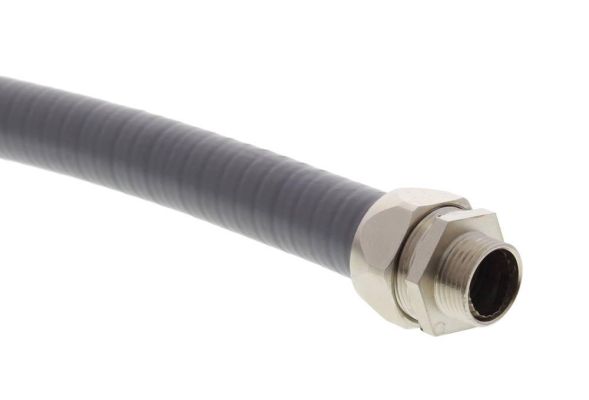

Metallic protective hose with PVC sheathing to protect cables under extreme mechanical stress.
| Property | Value |
| Nominal diameter: | 35 mm |
| Surface protection: | galvanized |
| Sheathing material 1st layer: | Polyvinyl chloride (PVC), flame retardant |
| Inner diameter: | 34.5 mm |
| Outer diameter: | 43 mm |
| Compressive strength: | 1250 N |
| Operating temperature: | -15 to 70 °C |
| Tensile strength: | 1000 N |
| Bending radius, static: | 180 mm |
| Weight: | 0.938 kg/m |
| Color: | grey |
| Electrical properties: | with conductive properties |
| Flame propagating: | no |
| Suitable for Ex areas: | no |
| Approval according to FI: | no |
| With approval according to UL: | no |
| Material: | steel |
| Protection class (IP): | IP67 |
| Bending behavior: | flexible |
Features
Inner diameter
34.5 mm
Bending radius, static
180 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
BMCG-PVC-S-35-LG RAL 7035 NW35
Manufacturer
HAN
10109036
GTIN
4007686079661
Outer diameter
43 mm
Operating temperature
-15 to 70 °C
Color
Weight
0.938 kg/m
Nominal diameter
35 mm
Surface protection
Galvanized
IP protection)
IP67
Material
Steel
