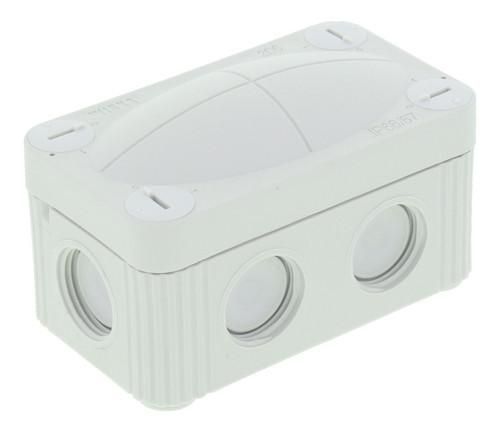

COMBI damp room cable junction box made of flame-retardant, halogen-free, glass fiber reinforced polypropylene, in 2-component plastic technology combined with puncture membranes made of thermoplastic elastomer. The box with a high protection class is weather and UV resistant, as well as impact-resistant and shatter-proof. Ideal for installation indoors and outdoors and under extreme conditions. High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis and alcohol. Permanently elastic, self-sealing, lateral puncture membranes in combination with integrated thread make both direct cable installation through the membrane and the use of cable glands without a lock nut possible. Captive quick-release cover screws close the box with just a quarter turn. There are permanently elastic, self-sealing puncture membranes on the sides and in the base for tool-free cable entry.
| Property | Value |
| Width: | 49 mm |
| Length: | 85 mm |
| Depth: | 51 mm |
| Color: | gray |
| Protection class (IP): | IP66/IP67 |
| Equipment: | Screw terminal |
| Mounting type: | universal |
| Material: | plastic |
| Cover fastening: | screwed |
| Can be mounted in series: | no |
| Shape: | rectangular |
| Type of housing feedthrough: | thread and sealing membrane |
| Halogen-free: | yes |
| For Ex zone gas: | without |
| Functional integrity: | without |
| Explosion-tested version: | no |
| Supplied with casting compound: | no |
| Potable: | yes |
| For Ex zone dust: | without |
| Transparent cover: | no |
| Number of entries: | 8 |
| Surface protection: | untreated |
| For pipe diameter: | other |
| Max. Conductor cross-section: | 1.5 mm² |
| Sealable: | yes |
| With shielding: | no |
| Rated insulation voltage Ui: | 400 V |
| Introduction from the rear: | yes |
| Weatherproof: | yes |
| Cover design: | Blank cover |
| Operating temperature: | -30 to 100 °C |
| Version: | Connection box |
