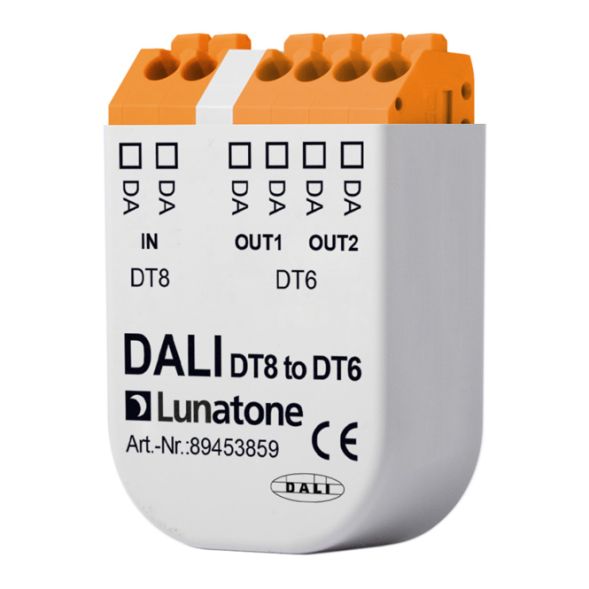

DALI DT8 to DT6 Interface - for Tunable White control with 2 DALI DT6 1-channel LED supplies - The device has 1 DALI address (DT8, Type Tc) - Separate outputs for cold and warm white channel (factory setting) - Alternative output to groups (G0 and G1) - System size can be expanded with DALI Expander, DALI Expander3 or DALI RepeaterPS - Configuration with PC software tool DALI-Cockpit and DALI USB interface Specification, characteristics Electrical data Control input: DALI Current requirement DALI: 2mA + current requirement sub-circuit Output: 2xDALI Number of DALI addresses: 1 (DT8) Technical data Status after mains return: adjustable via DALI Ambient temperature: -15 degrees Celsius - 50 degrees Celsius Protection class: IP20 Max. cable cross-section: up to 1.5 mm2 Mounting/housing shape: box Dimensions (LxWxH): 58mm x 33mm x 15mm For further information please refer to the data sheet.
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
9010342010651
Siemens LOGO!
No
Hager KNXeasy
No
KNX IP interface
No
KNX line coupler
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Wi-Fi
No
Zigbee
No
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
Gira One
No
JUNG HOME
No
KNX IP router
No
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Division units
-
Manufacturer type
DALI DT8 to DT6
Media coupler
No
System center
No
Transmission type
-
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
KNX-RF media coupler
No
Modbus RTU
No
DALI
Yes
Class
N/A
Free@home
No
installation location
Wall
HAN
89453859
Manufacturer
LUNATONE
GTIN
9010342010651
